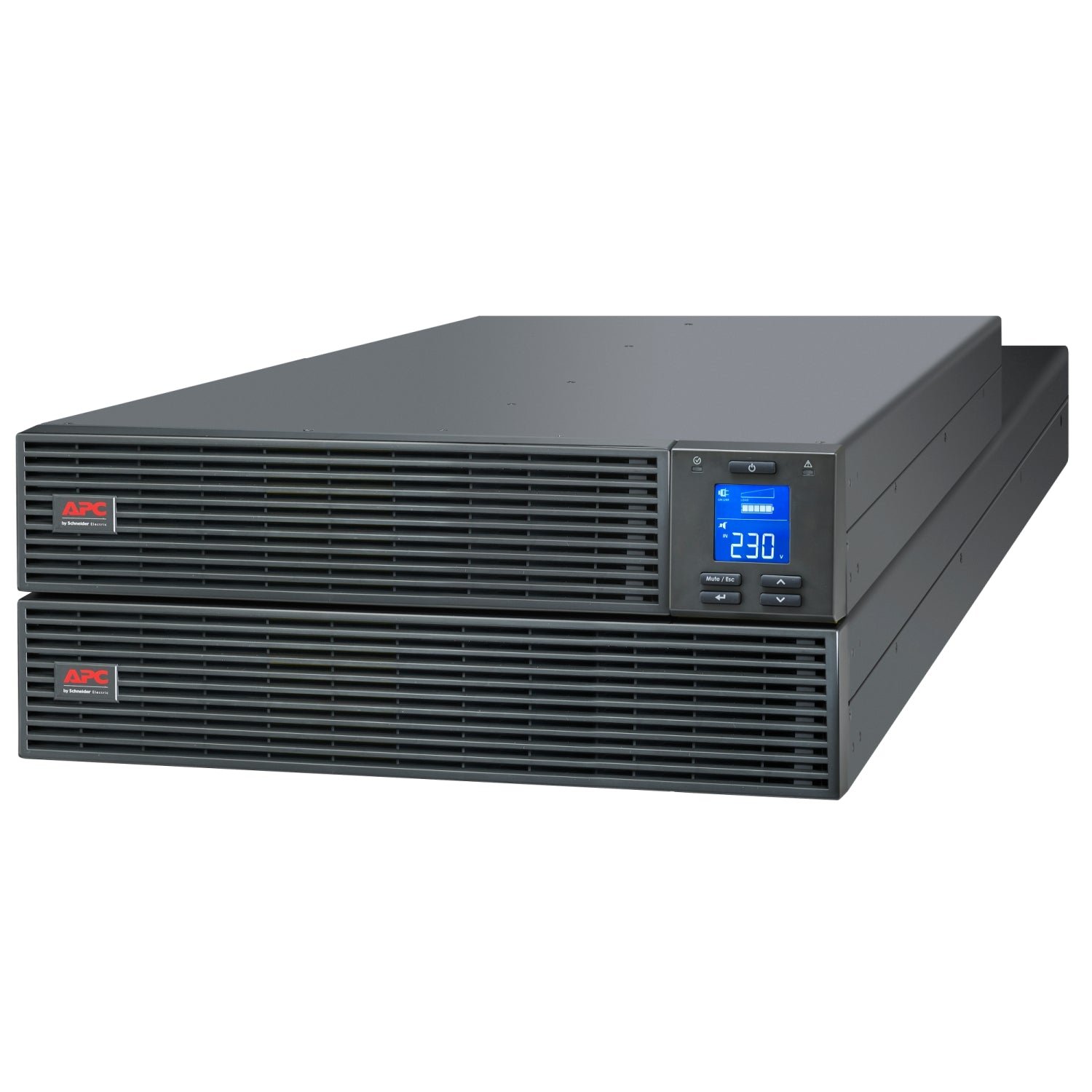

APC / SRV10KRIRK / Easy UPS On-Line 10kVA/10kW Rackmount 4U 230V Hard wire 3-wire(1P+N+E) outlet Intelligent Card Slot LCD W/ Rail Kit – اي بي سي يو بي اس 10كيلو وات 230 فولت SRV10KRIRK

TECHNICAL SPECIFICATIONS
OUTPUT
Max Configurable Power (Watts) 10.0kWatts / 10.0k VAEfficiency at Full Load 94.0 % Output Voltage Distortion1 % Output Frequency (sync to mains)50/60 Hz +/- 3 Hz Sync to mains Other Output Voltages 220 V, 240 V Load Crest Factor3 : 1 TopologyDouble conversion online Waveform type Sine wave Bypass Internal bypass (automatic and manual)
INPUT
Input frequency40 – 70 Hz Auto sensingInput voltage range for main operations110 – 300 60 % load, 176 – 300 Full loadVEfficiency at Full Load94.0 % Other Input Voltages220 V, 240 V
BATTERIES & RUNTIME
Battery typeLead-acid batteryTypical recharge time5hour(s)Nominal Battery Voltage192 VExpected Battery Life (years)3 – 5Battery Charge Power (Watts)235 WattsRuntimeView Runtime GraphEfficiencyView Efficiency Graph
COMMUNICATIONS & MANAGEMENT
Interface Port(s)DB-9 RS-232, Intelligent Smart Slot, USBControl panelMultifunction LCD status and control consoleEmergency Power Off (EPO)YesAvailable SmartSlot™ Interface Quantity1
SURGE PROTECTION AND FILTERING
Surge energy rating600Joules
PHYSICAL
Maximum Height173MM, 17.3CMMaximum Width438MM, 43.8CMMaximum Depth710MM, 71.0CMNet Weight68.0KGShipping weight79.0KGShipping Height485MM, 48.5CMShipping Width836MM, 83.6CMShipping Depth600MM, 60.0CMColorBlack
ENVIRONMENTAL
Operating Temperature0 – 40 °COperating Relative Humidity0 – 95 (Non-condensing) %Operating Elevation0 – 3000metersStorage Temperature-15 – 60 °C Storage Relative Humidity 0 – 95 (Non-condensing) %Storage Elevation0 – 15000metersAudible noise at 1 meter from surface of unit58.0dBAOnline thermal dissipation2128.0BTU/hrProtection ClassIP20
